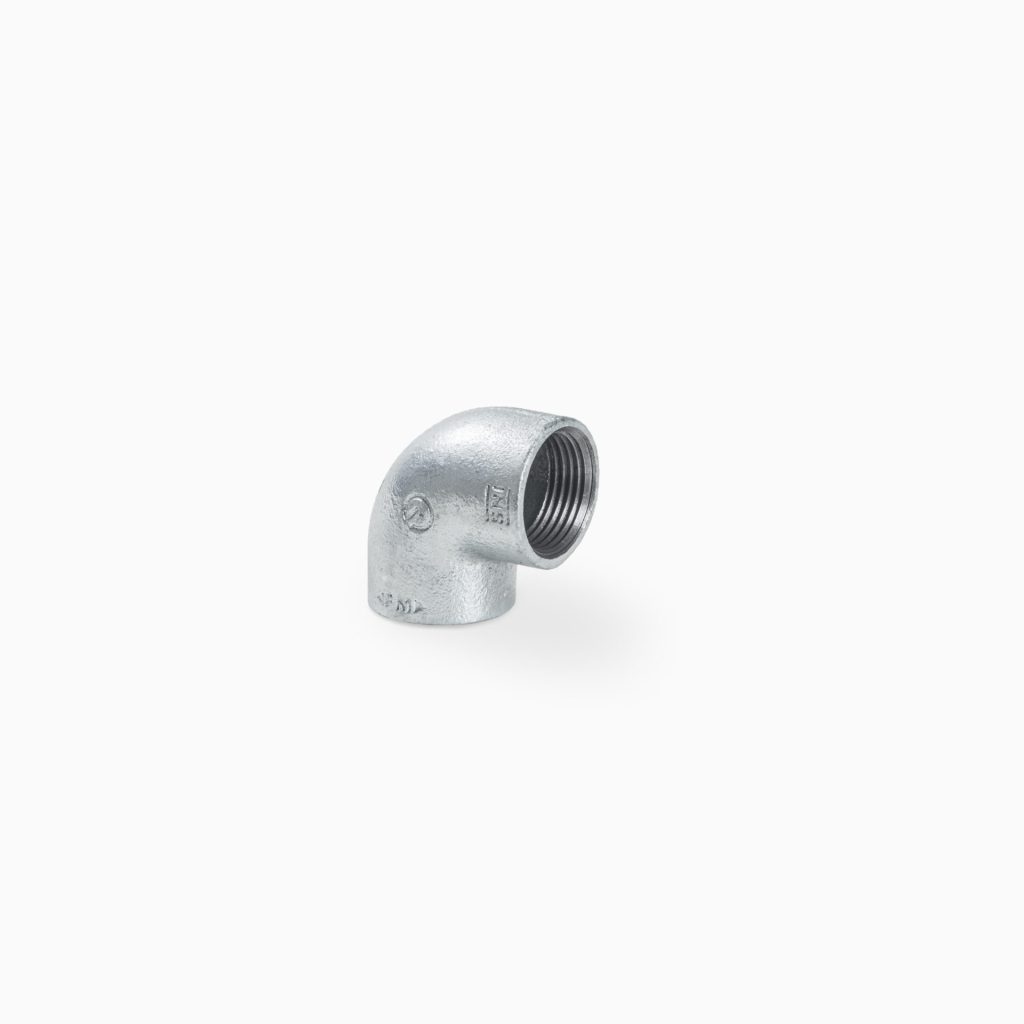

Elbow 90° Plain (FIG NO. 1090)
Galvanized and Black Malleable Iron Pipe Fittings Standard with the following specifications : – Size : 1/2″- 2″ – Design: SNI 0139 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 – Reinforcement: Plain

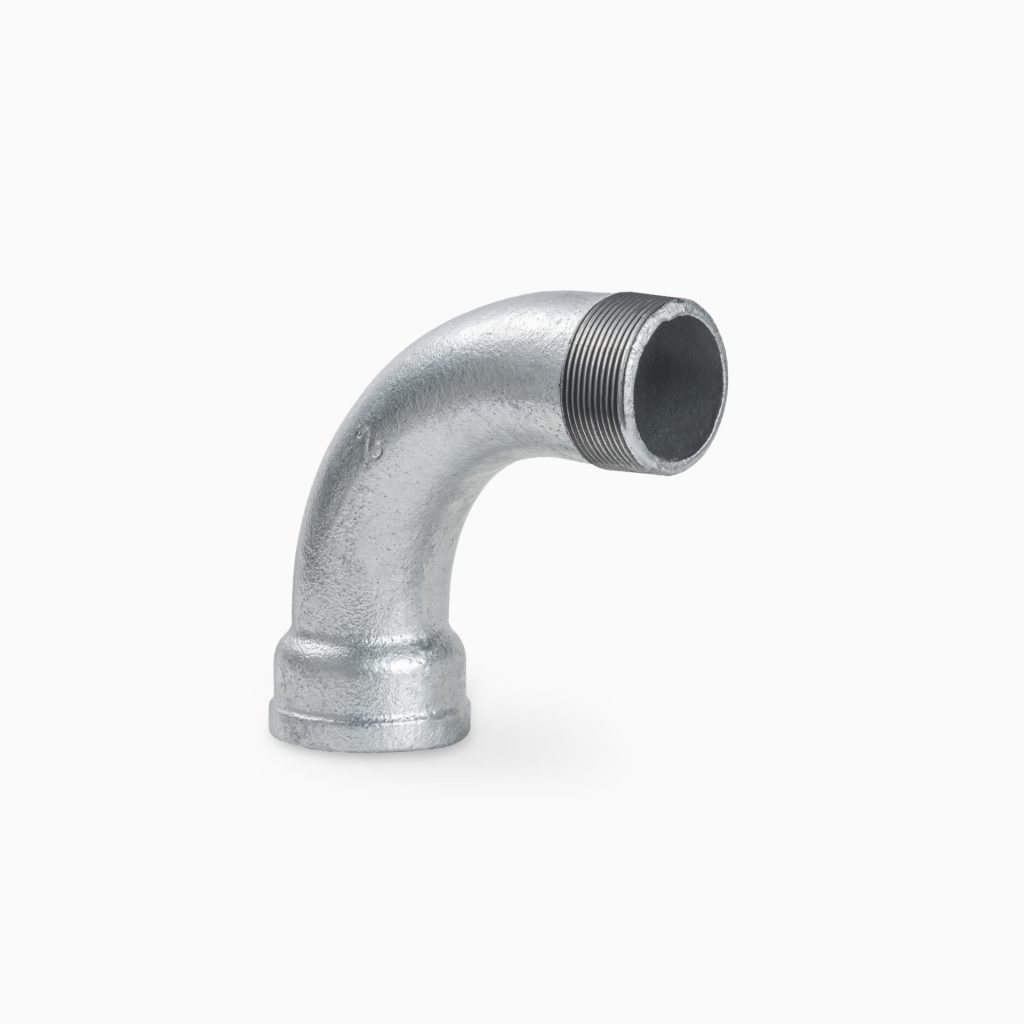

Bends Long M & F 90° Plain (FIG NO. 1)
Galvanized and Black Malleable Iron Pipe Fittings Standard with the following specifications : – Size : 1/2″- 4″ (BENDS LONG M&F (90L) – Design: SNI 0139 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 – Reinforcement: Plain

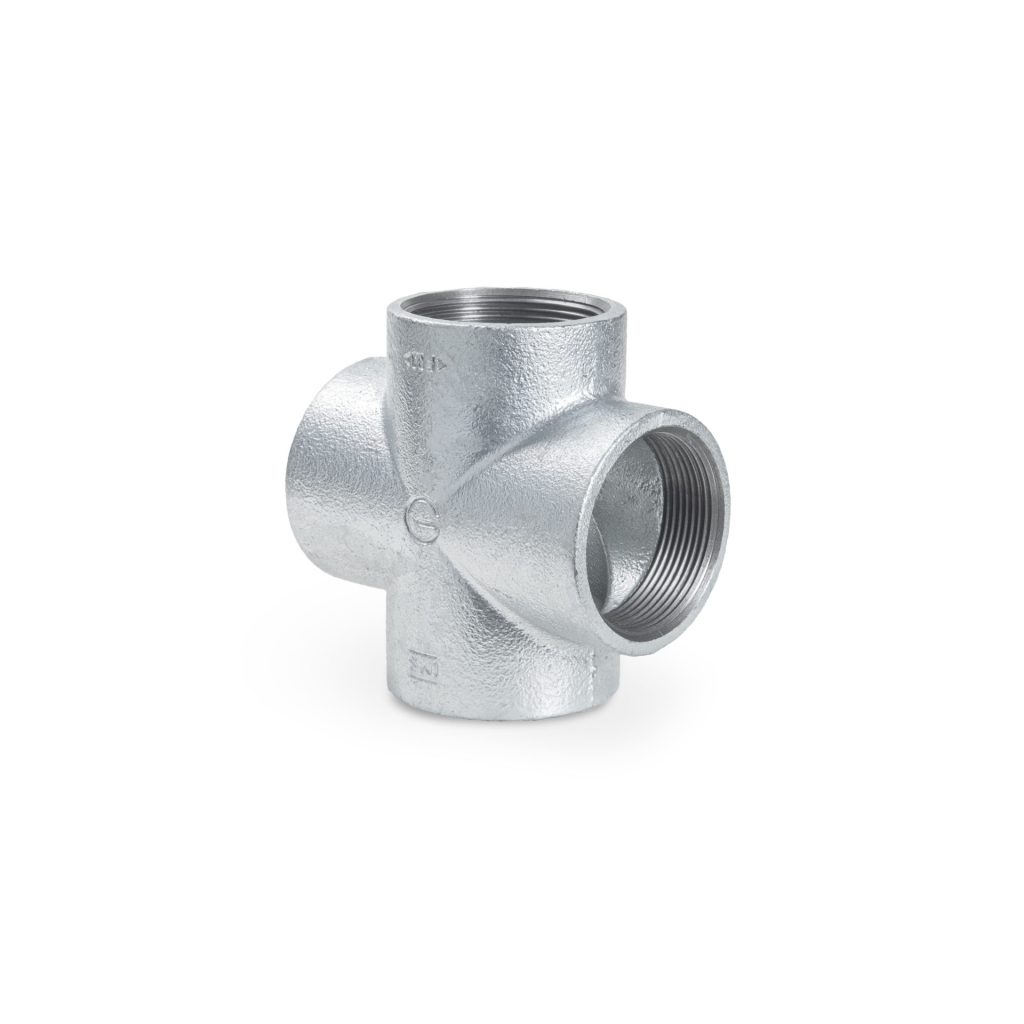

Cross Pipe Fittings (FIG NO. 180)
Galvanized and Black Malleable Iron Pipe Fittings Standard with the following specifications : – Size : 1/2″ – 3″ – Design: SNI 0139 / JIS B 2301 / BS 143 & 1256 (BS EN 10242) – Material: SNI 0139 / JIS G 5702 / BS EN 1562 – Threads: ISO 7-1 / JIS B 0203 […]

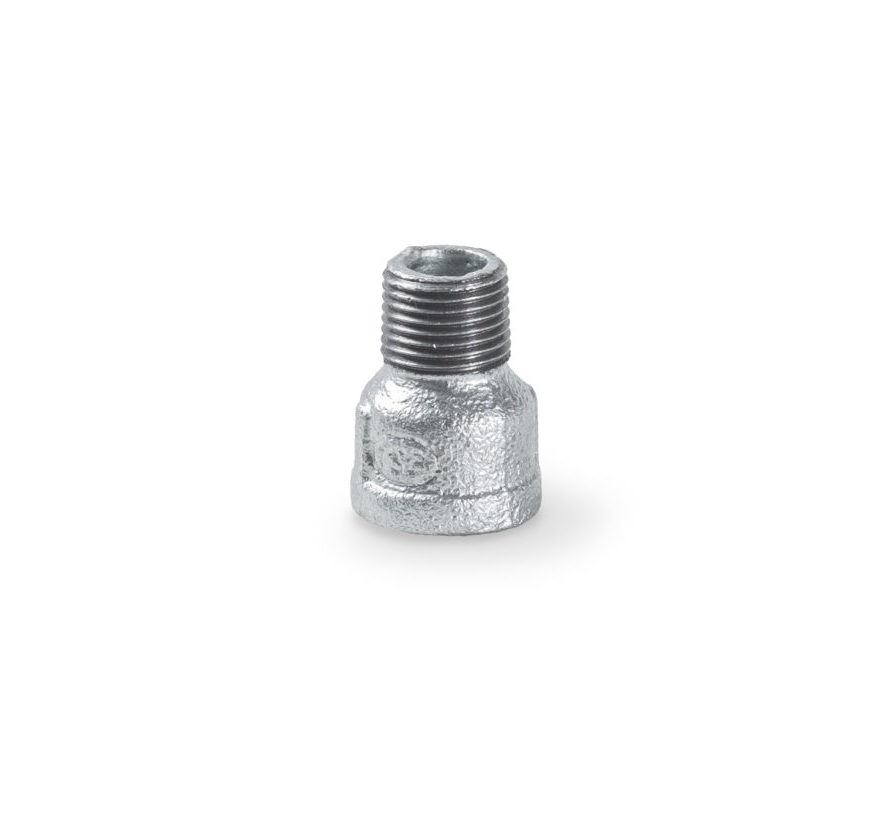

Extension Nipple Pieces (FIG NO. 529A)
Galvanized and Black Malleable Iron Pipe Fittings Standard with the following specifications : – Size : 1/4″ – 6″ – Design: SNI 0139 / JIS B 2301 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 / JIS B 2301 – Reinforcement: Banded, Plain

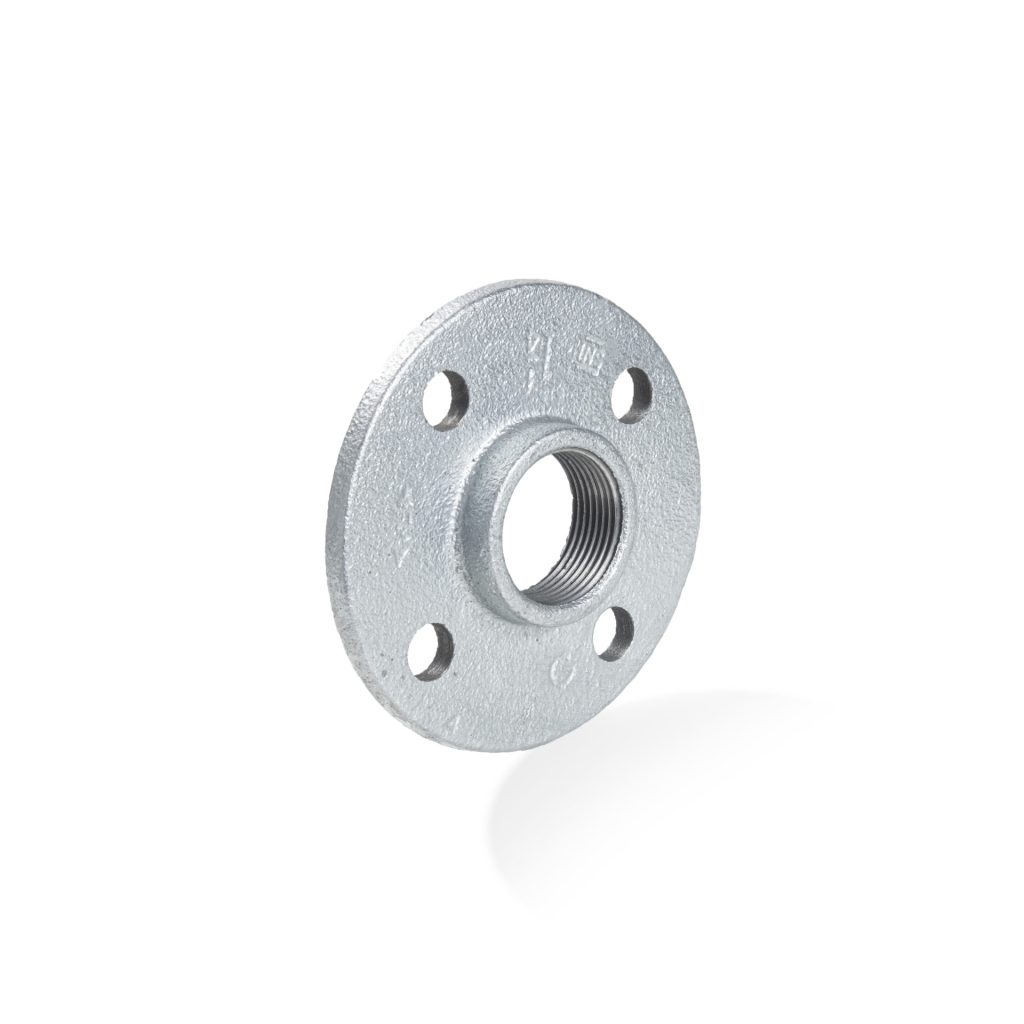

Round Flanges (FIG NO. 322)
Galvanized and Black Malleable Iron Pipe Fittings Standard with the following specifications : – Size : 1/2″ – 6″ – Design: SNI 0139 / JIS B 2301 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 / JIS B 2301 – Reinforcement: Banded, Plain Fitting Orifice Flange
Union Conical Joint (FIG NO. 340)
Union Conical Joint Brass to Iron Seat specification : – Size : 1/4″ – 6″ – Design: SNI 0139 / JIS B 2301 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 / JIS B 2301 – Reinforcement: Banded, Plain Union Fittings
Union Flat Seat (FIG NO. 330)
Union Flat Seat Iron to Iron Seat With Gasket Standard specification : – Size : 1/4″ – 6″ – Design: SNI 0139 / JIS B 2301 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 / JIS B 2301 – Reinforcement: Banded, Plain Union Fittings
Lock Nuts (FIG NO. 310)
Lock Nut Galvanized Iron Pipe Standard dengan spesifikasi sebagai berikut : – Size : 1/4″ – 6″ – Design: SNI 0139 / JIS B 2301 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 / JIS B 2301 – Reinforcement: Banded, Plain Clamp Nut

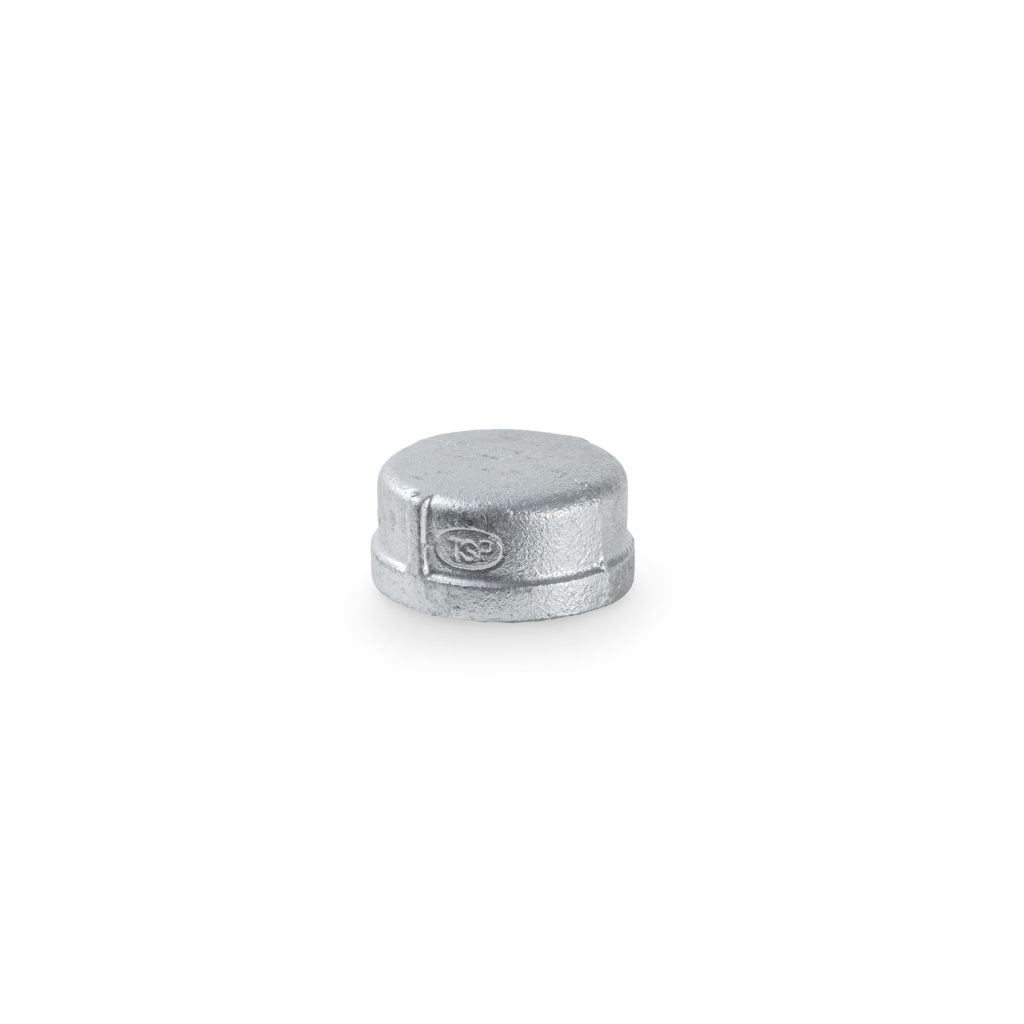

Round Caps Banded (FIG NO. 300)
Round Caps Banded Iron Pipe Standard dengan spesifikasi sebagai berikut : – Size : 1/4″ – 6″ – Design: SNI 0139 / JIS B 2301 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 / JIS B 2301 – Reinforcement: Banded, Plain Forged End Caps
Plugs Square Head (FIG NO. 291)
Plugs Square Head Iron Pipe Standard dengan spesifikasi sebagai berikut : – Size : 1/4″ – 6″ – Design: SNI 0139 / JIS B 2301 – Material: SNI 0139 – Threads: ISO 7-1 – Zinc Coating: SNI 0139 / JIS B 2301 – Reinforcement: Banded, Plain Sambungan Pipa Lainnya
